Click on the brochure title to download your brochure.

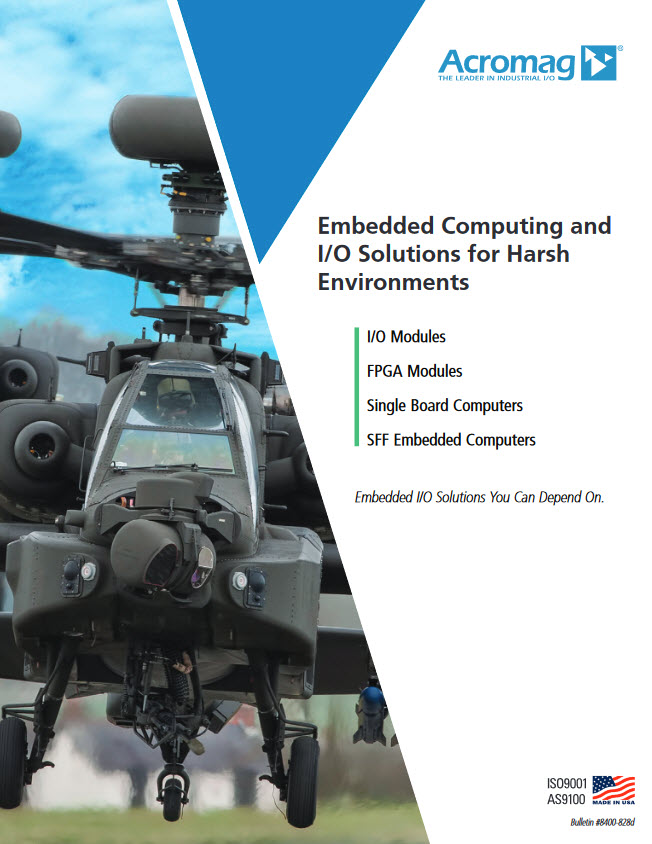

Embedded Capabilities Product Summary Guide

Embedded Capabilities Product Summary Guide  (8 pages • 2.7 MB • PDF Format)

Eight page single board computer, mass storage board, FPGA computing, and embedded I/O product line overview brochure.

Return to top of page.


AcroPack® mPCIe-based Next-Generation Rugged Mezzanine Modules

AcroPack Series Brochure

AcroPack Series Brochure (85 pages • 18 MB • PDF Format)

AcroPack mezzanine modules deliver maximum I/O density when used with AcroPack carriers. Designed for COTS applications these general purpose I/O modules deliver high-speed and high-resolution A/D and D/A, digital I/O, counter/timers, Ethernet, communication, and user-configurable FPGA functions.

Return to top of page.


CompactPCI

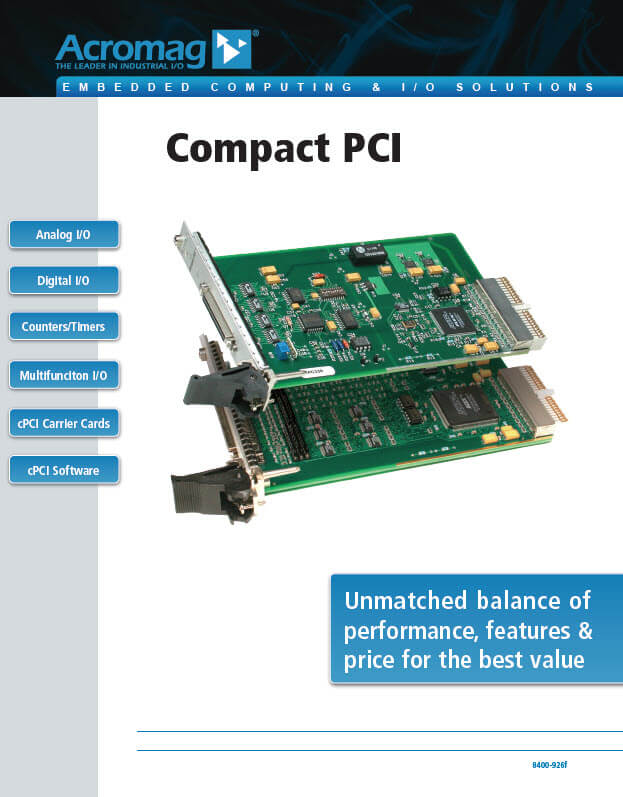

Compact PCI Product Brochure

CompactPCI Product Brochure (23 pages • 3.8 MB • PDF Format)

Acromag CompactPCI boards are well-suited for COTS and industrial projects. Many models are available for a variety of analog, digital I/O, counter/timer and multi-function I/O functions as well as carrier cards and software support. These modules offer an unmatched balance of performance, features, and price for the best value in CompactPCI I/O.

Return to top of page.


COM Express

COM Express Products Brochure

COM Express Products Brochure  (6 Pages •  1 MB • PDF Format)

Acromag’s rugged COM Express products feature advanced thermal management and shock/vibration resistance specifically designed to withstand harsher treatment from the bottom-up, our COM Express products start with a thicker circuit board. Add extended operating temperature support, for optimal performance.

Return to top of page.


Embedded Mission Computers

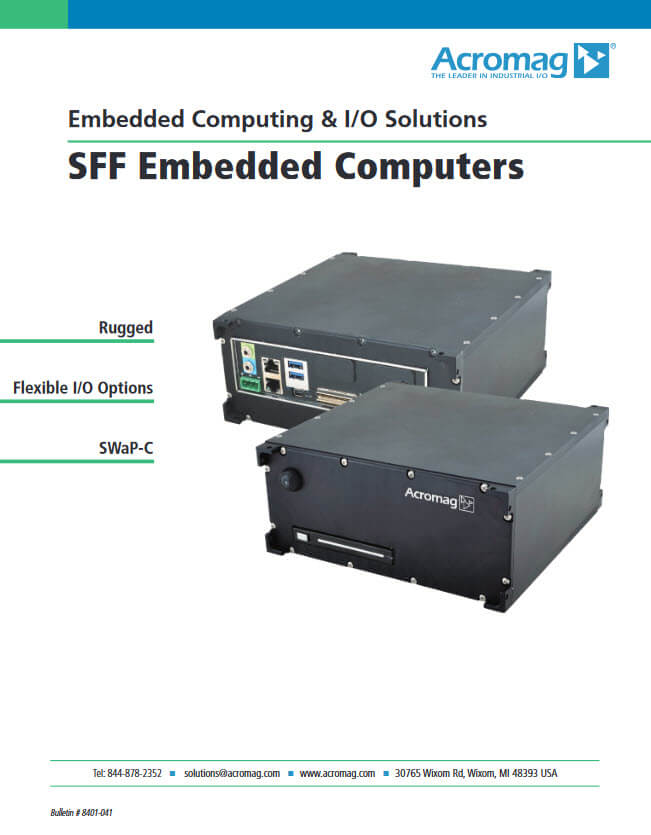

ARCX Embedded SFF Computers Brochure

ARCX Embedded SFF Computers Brochure (7 pages • 2 MB • PDF Format)

Acromag’s ARCX Embedded Computer is a rugged, mission computer that is customizable-off-the-shelf and SWaP-optimized. I/O options include FPGA, Analog/Digital, Counter/Timer, Serial Communication, Multifunction I/O, 10-Gigabbit ethernet. The ARCX also offers great flexibility to meet ever-changing requirements with unique expansion features such as PMC/XMC/Mini PCIe/mSATA slots for specialized I/O, memory, and FPGA modules, a MIL-DTL-38999 connector front panel and more.

Return to top of page.


Reconfigurable FPGA Modules

Reconfigurable FPGA Modules Brochure

Reconfigurable FPGA Modules Brochure (50 pages • 12 MB • PDF Format)

Acromag’s user-configurable FPGA modules are ideal for embedded computer and high-performance control systems. Select from a variety of modules with Xilinx® or Altera® FPGAs. Download your own application code into a powerful FPGA to perform custom signal processing functions. To help simplify your development, Acromag offers an engineering design kit with example programs to get you started quickly.

Return to top of page.


Industry Pack Mezzanine Modules

Industry Pack Series Brochure

 Industry Pack Series Brochure (37 pages • 5.6 MB • PDF Format)

Acromag Industry Pack mezzanine IP modules deliver maximum I/O density when used with industry-standard IP carrier cards for VME, PCI, CompactPCI or PCI Express. These plug-in Industry Pack modules give you mix-and-match flexibility and high channel density to save your valuable card slots.

Return to top of page.


PCI Express Products

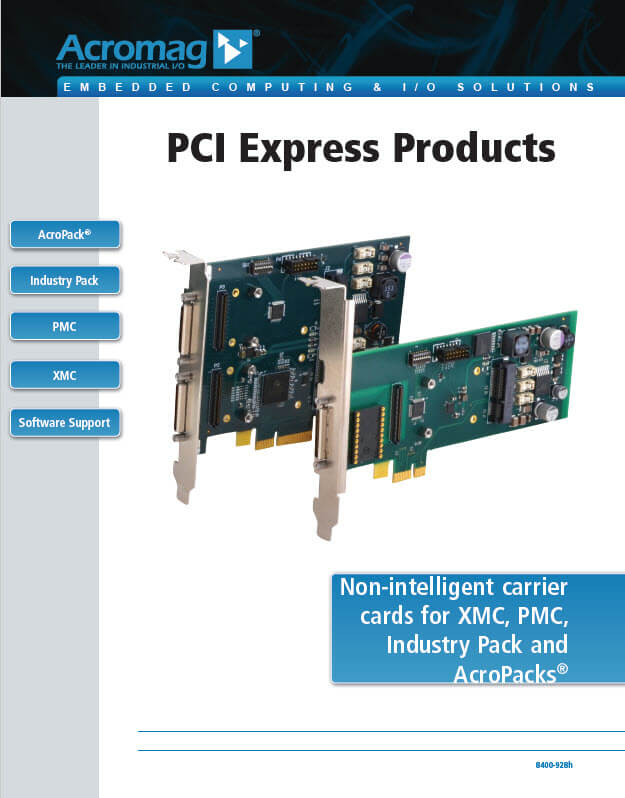

PCI Express I/O Products Brochure

PCI Express I/O Products Brochure (18 pages • 5.2 MB • PDF Format)

Acromag’s non-intelligent PCI Express carrier cards interface XMC and PMC mezzanine modules Industry Pack Modules and AcroPack mezzanine  modules to a PCI Express bus in a PC-based embedded computer.

Return to top of page.


PCI I/O Products

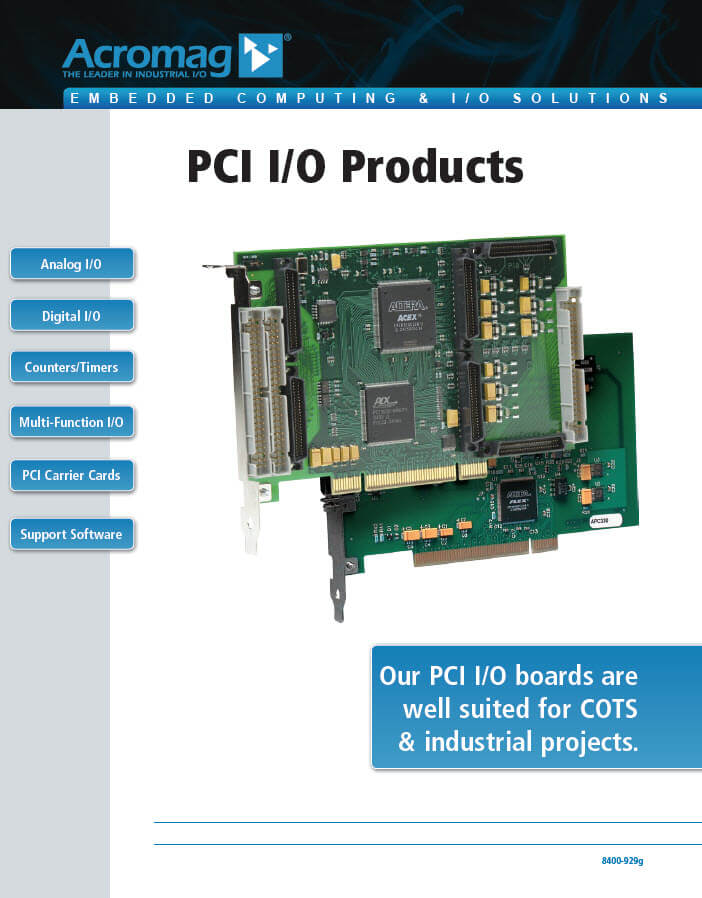

PCI/O Products Brochure

PCI/O Products Brochure (15 pages • 3.1 MB • PDF Format)

Acromag PCI I/O Boards are well-suited for COTS and industrial projects. Many models are available for a variety of analog and digital I/O functions. These modules offer an unmatched balance of performance, features, and price for the best value in PCI I/O.

Return to top of page.


PMC Products

PMC Products Brochure

PMC Products Brochure (39 pages • 2.9 MB • PDF Format)

Acromag PMC modules are well-suited for COTS and industrial projects. Many models are available for a variety of analog and digital I/O functions. These modules offer an unmatched balance of performance, features, and price for the best value in PMC I/O.

Return to top of page.


VME Products

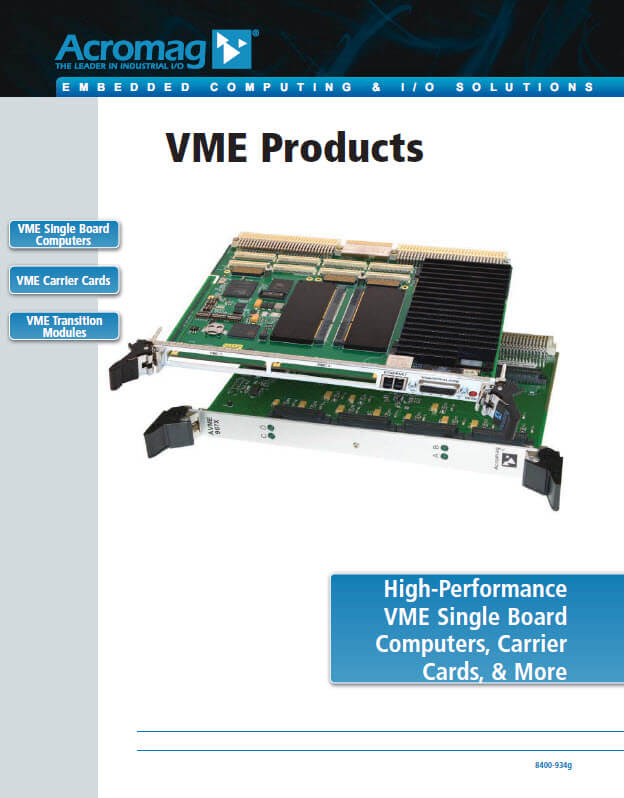

VME Products Brochure

VME Products Brochure (15 pages • 4 MB • PDF Format)

Acromag’s line of VME single board computer (SBC) products provide a variety of high-performance embedded computing solutions for defense, aerospace, scientific, transportation, and manufacturing applications. These VMEbus SBC processor modules are available air-cooled and with a range of CPU, I/O, memory, and hardware configurations to satisfy your unique application requirements. VME Carrier cards and accessories as well.

Return to top of page.


VPX Products

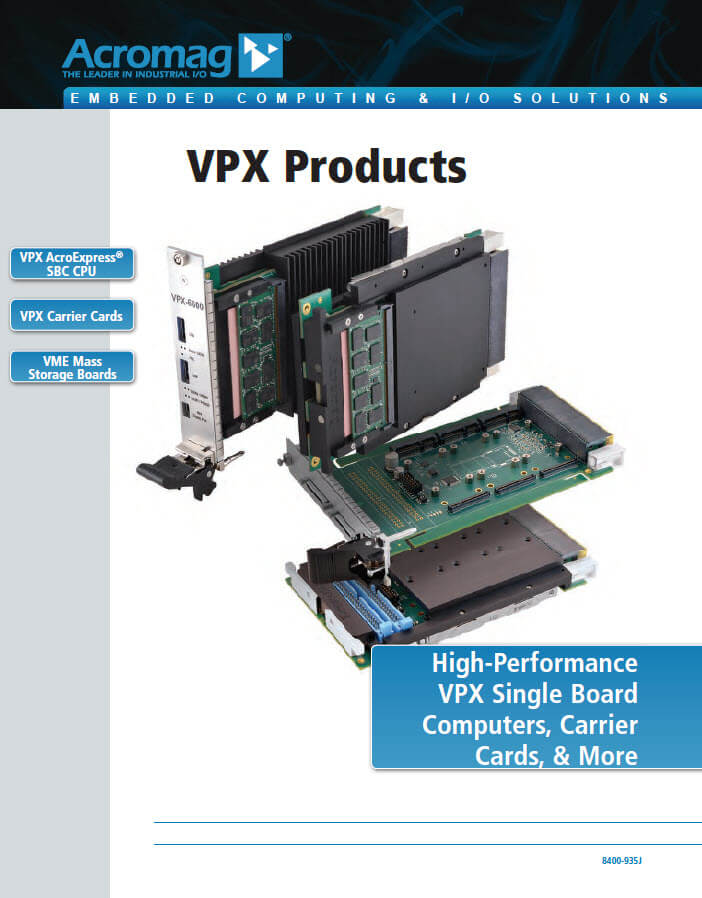

VPX Products Brochure

VPX Products Brochure (16 pages • 3.8 MB • PDF Format)

VPX boards (VITA 46) are ideal for high-performance industrial, defense, scientific research, and telephony systems requiring high-speed I/O with serial fabric interconnect technologies. Carrier cards with PCI Express provide a simple and cost-effective solution for interfacing a PMC or XMC I/O modules to a VPX computer system. VPX FPGA modules offer great flexibility and performance for custom computing applications.

Return to top of page.


XMC Products

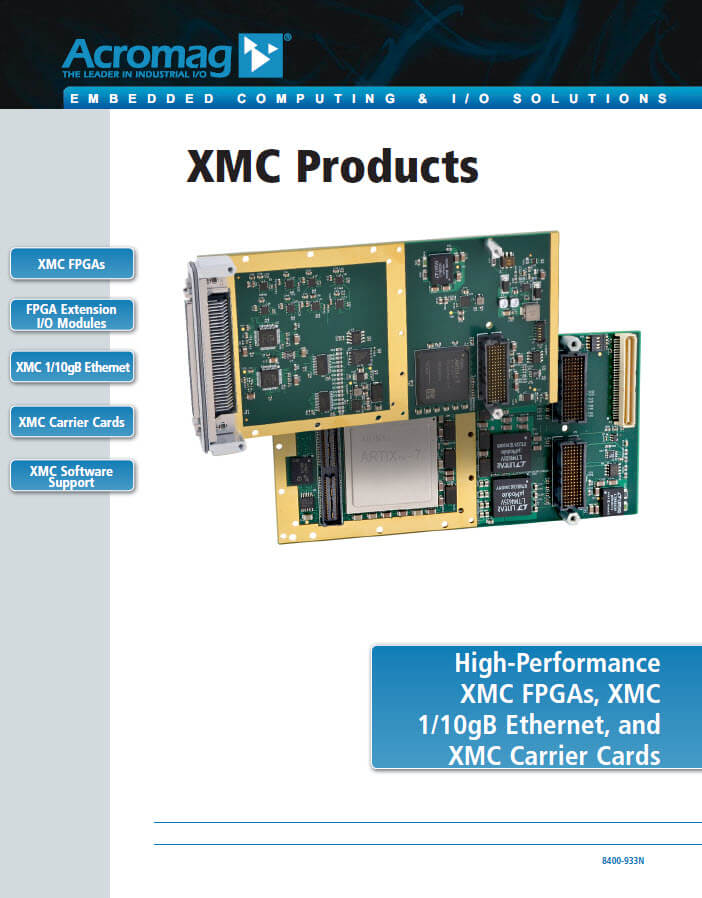

XMC Products Brochure

XMC Products Brochure (46 pages • 12MB • PDF Format)

XMC modules will continue to deliver high performance and savings in mature, well-characterized systems that depend on accurate, reliable data input such as defense, aerospace, and scientific applications.
